Hinged actuator, left, for safety switches NZ.VZ, NZ.VZ.VS and TZ
- Two stainless-steel safety screws per actuator
- Packaging unit 25 pieces
Description
Hinged actuators
For door radii less than 1000 mm a hinged actuator should be used. The spring action movement of the actuator prevents damage due to the actuator jamming in the actuator head. Depending on the movement of the guard, the actuator must be selected for left/right or top/bottom.
Screws made of stainless steel
The safety screws included can be inserted with a normal tool, but cannot be removed again.

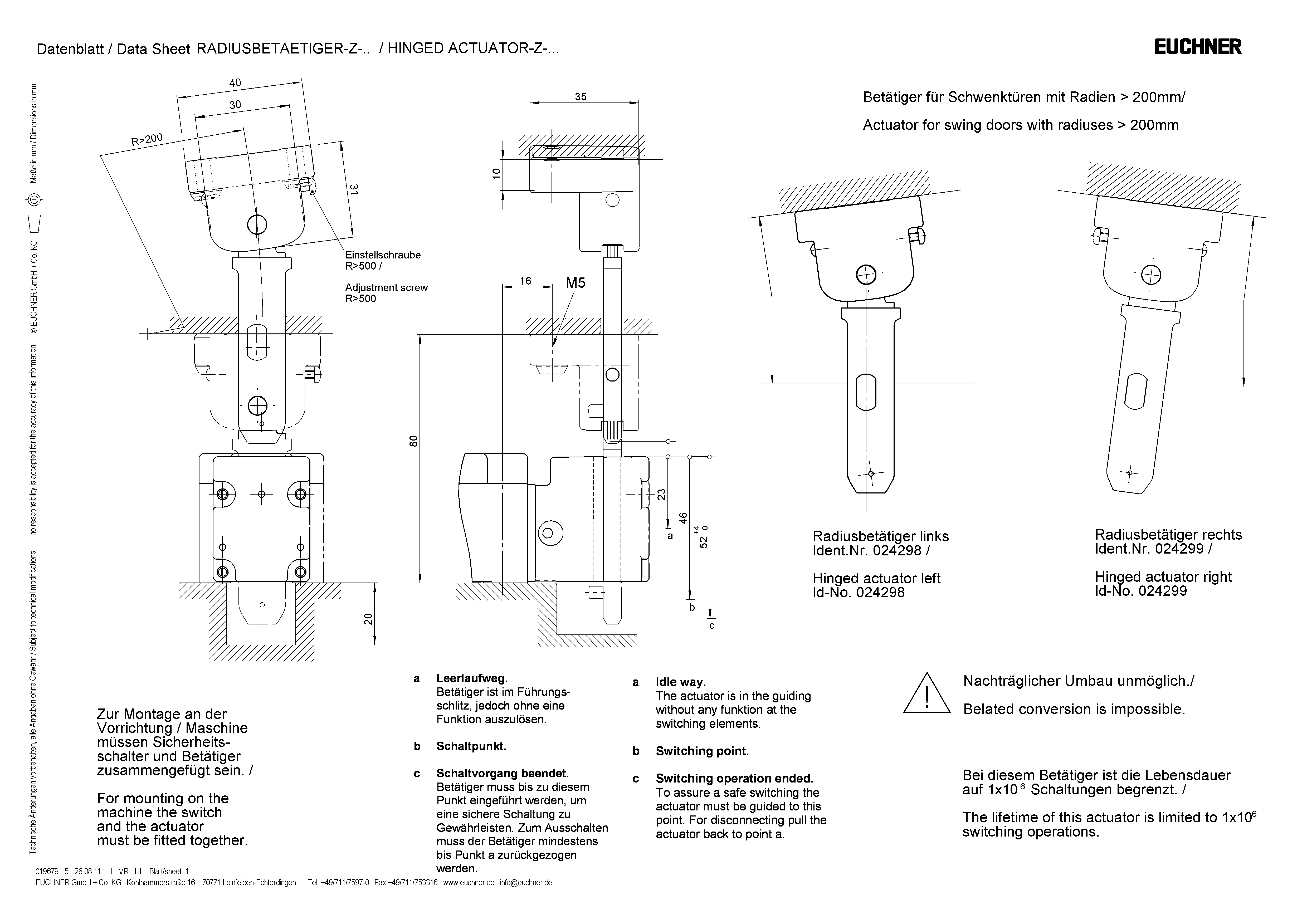

Dimensional drawings
Dimensional drawings
Technical data
Mechanical values and environment
| Overtravel | max. 4 mm |
| Door radius | min. 400 mm |
| Material | |
| Sheath | Plastic |
| Actuator | Galvanized steel |
| Screw | Stainless steel |
Miscellaneous
| Usability of insertion funnel | no |
Accessories
Downloads
Sales documents
Safety Switches with Metal Housing
Doc. no.
Version
Language
Size
Safety Switches with Metal Housing
Doc. no.
100369
Version
11-03/18
Language
Size
7,8 MB
Interrupteurs de sécurité avec boîtier métallique
Doc. no.
100676
Version
11-03/18
Language
Size
7,9 MB
Interruptores de seguridad con carcasa metálica
Doc. no.
104856
Version
11-03/18
Language
Size
14,0 MB
Sicherheitsschalter mit Metallgehäuse
Doc. no.
100319
Version
11-03/18
Language
Size
7,9 MB
金属壳体 的安全开关
Doc. no.
102453
Version
11-03/18
Language
Size
8,2 MB
Bezpečnostní spínače s kovovým pouzdrem
Doc. no.
121650
Version
11-03/18
Language
Size
7,8 MB
CAD data
Ordering data
| Ordernumber | 074413 |
| Item designation | RADIUSBETAETIGER-Z-L/V25 |
| Gross weight | 2,63kg |
| Customs tariff number | 85389099990 |
| ECLASS | 27-27-26-06 Actuator for safety-related position switch |
