HomeProductsElectromechanical safety switches without guard lockingNM small plastic switch; large selection of actuating headsNM02KBA-M
Safety switch NM.KB with roller arm, long housing, cable entry M16 x 1.5
- Roller arm, roller diameter 12 mm
- long housing
- 3 x cable entry M16 x 1.5
- 2 pos. driven contacts
Description
Dimensional drawings
* | fixed positioning for safety-related applications (M5) |
1 | Approach direction |
Connection examples
Shift travel diagrams
Technical data
Approvals
Electrical connection values
Connection cross section | 0.34 ... 1.5 mm² |
Rated insulation voltage Ui | 250 V |
Rated impulse withstand voltage Uimp | 2.5 kV |
Utilization category | |
DC-13 | 4 A 24 V |
AC-15 | 4 A 230 V |
Short circuit protection according to IEC 60269-1 | 4A gG |
Switching voltage | |
min. at 10 mA | 12 V |
Switching current | |
min. at 24 V | 1 mA |
thermal rated current Ith | 4 A |
Mechanical values and environment
Approach speed | max. 60 m/min |
Approach direction | A |
Connection type | |
3 x | M16 x 1.5 |
Number of door position positively driven contacts | 2 |
Design | long housing |
Actuating element | |
Slide bearing plastic | Roller arm (d roller = 12 mm) |
Actuation frequency | max. 5000 1/h |
Actuating force | 15 N |
Installation orientation | any |
Mechanical life | 20 x 10⁶ |
Switching principle | Slow-action switching contact |
Degree of protection | IP67 |
Ambient temperature | -20 ... +80 °C |
Material | |
Contact | Silver alloy, gold flashed |
Housing | Reinforced thermoplastic |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
B10D | Mission time | |
---|---|---|
Safety position sensor | 2x107 | 20 y |
Important! Values valid at DC-13 100 mA/24V |
Accessories
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Single Documents
Declarations of conformity
EU declaration of conformity
Doc. no.
Version
Language
Size
EU declaration of conformity
Déclaration UE de conformité
Declaración de conformidad UE
EU-Konformitätserklärung
Dichiarazione UE di conformità
Déclaration UE de conformité
Declaración de conformidad UE
EU-Konformitätserklärung
Dichiarazione UE di conformità
Doc. no.
EDC2539628
Version
Language
Size
0,2 MB
EU declaration of conformity
Déclaration UE de conformité
Declaración de conformidad UE
EU-Konformitätserklärung
Dichiarazione UE di conformità
Déclaration UE de conformité
Declaración de conformidad UE
EU-Konformitätserklärung
Dichiarazione UE di conformità
Doc. no.
EDC2539628
Version
Language
Size
0,2 MB
UKCA-Konformitätserklärung
Doc. no.
Version
Language
Size
UKCA-Konformitätserklärung
Doc. no.
EDC20001551
Version
Language
Size
0,1 MB
Instructions
Operating Instructions Safety Switch NM..KB
Doc. no.
Version
Language
Size

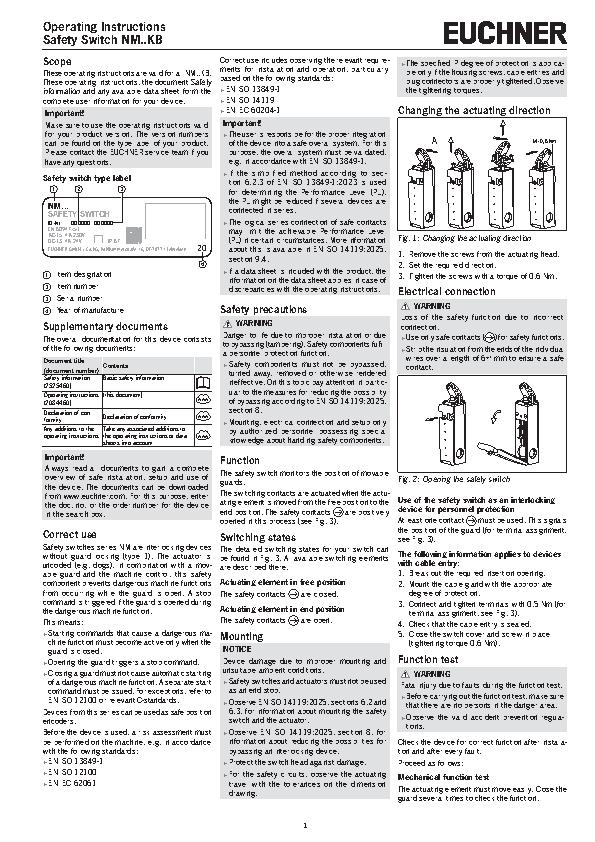

Operating Instructions Safety Switch NM..KB

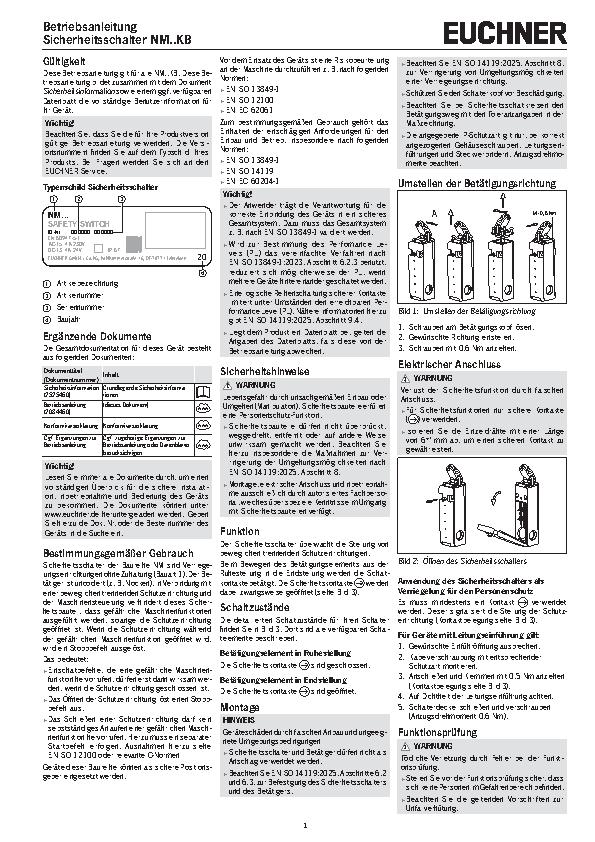

Betriebsanleitung Sicherheitsschalter NM..KB
Betriebsanleitung Sicherheitsschalter NM..KB
Doc. no.
2084460
Version
05/24
Language
Size
1,2 MB

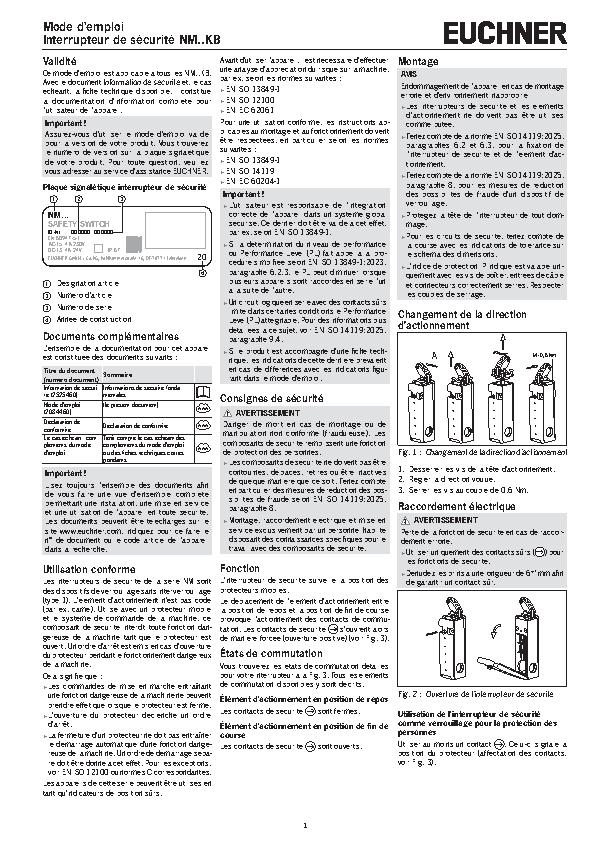

Mode d’emploi Interrupteur de sécurité NM..KB
Doc. no.
2084460
Version
05/24
Language
Size
0,6 MB

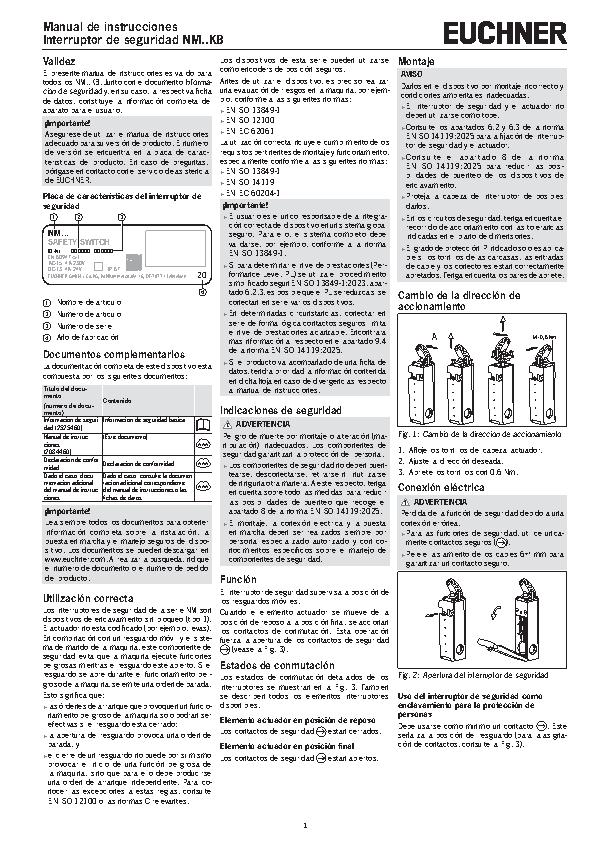

Manual de instrucciones Interruptor de seguridad NM..KB
Doc. no.
2084460
Version
05/24
Language
Size
0,6 MB
Betriebsanleitung Sicherheitsschalter NM..KB
Doc. no.
2084460
Version
05/24
Language
Size
0,6 MB

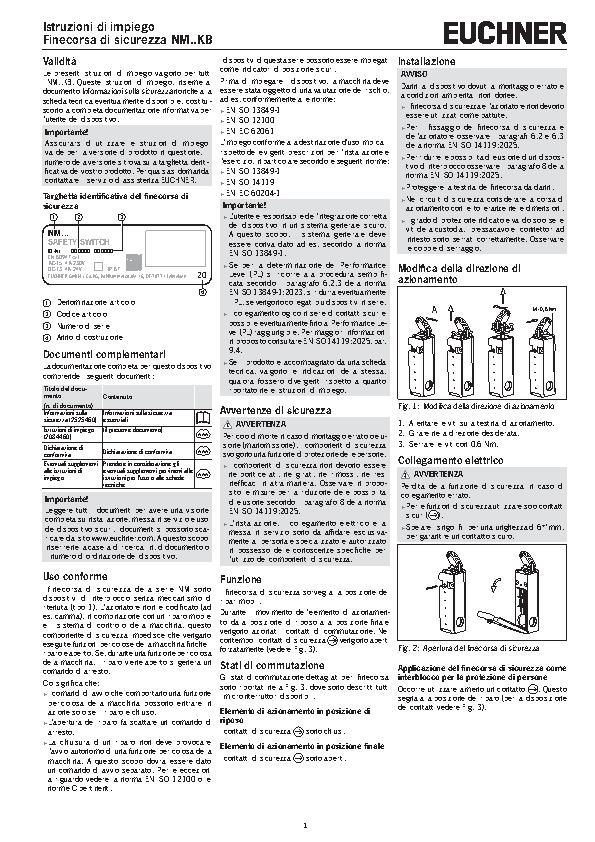

Istruzioni di impiego Finecorsa di sicurezza NM..KB
Doc. no.
2084460
Version
05/24
Language
Size
0,6 MB
Other Documents
Approvals and certificates
CCC
Doc. no.
Version
Language
Size
CCC
Doc. no.
Version
Language
Size
0,2 MB
c UL us
Doc. no.
Version
Language
Size
c UL us
Doc. no.
Version
Language
Size
0,3 MB
CAD data
Ordering data
Ordernumber | 084524 |
Item designation | NM02KBA-M |
Gross weight | 0,094kg |
Customs tariff number | 85365019000 |
ECLASS | 27-27-26-01 Safety position switch (Type 1) |
