RPS-PS/V5 (Order no. 092501)
Choose content

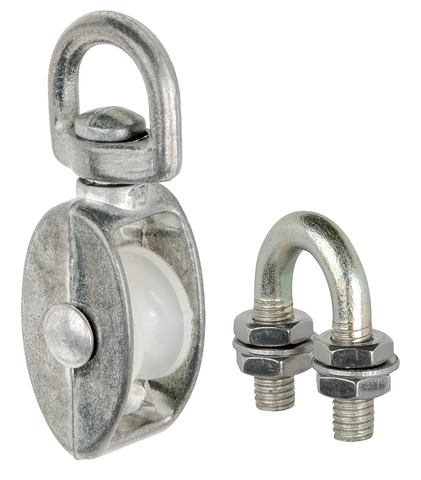

Pulley set RPS-PS/V5 for rope pull switches
- Pulley set consisting of rope pulley block and pulley support
Description
Dimensional drawings
| 1 | Rope pulley block |
| 2 | Pulley bracket |
Technical data
Mechanical values and environment
| Roller diameter | 9 mm |
| Rope diameter | 2 ... 5 mm |
| Material | |
| Mounting | Galvanized steel |
| Roller | Polyamide |
| Rope pulley block | Die-cast zinc |
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Download Complete Package (ZIP, 0,7 MB)
Single Documents
Other Documents
Sales documents
Emergency Stop Devices/Rope Pull Switches
Doc. no.
Version
Language
Size
Emergency Stop Devices/Rope Pull Switches
Doc. no.
116448
Version
06-06/16
Language
Size
1,8 MB
Dispositifs d‘arrêt d‘urgence/interrupteurs à câble
Doc. no.
116529
Version
06-06/16
Language
Size
1,8 MB
Dispositivos de parada de emergencia / Interruptores de accionamiento por cable
Doc. no.
116530
Version
06-06/16
Language
Size
1,8 MB
Not-Halt-Geräte/Seilzugschalter
Doc. no.
106210
Version
06-06/16
Language
Size
1,8 MB
CAD data
Ordering data
| Ordernumber | 092501 |
| Item designation | RPS-PS/V5 |
| Gross weight | 0,2kg |
| Global Trade Item Number (GTIN) | 4047048006621 |
| Customs tariff number | 85389099990 |
