Actuator for safety switches NZ.VZ, NZ.VZ.VS and TZ
- Made of solid stainless steel
- Two stainless-steel safety screws per actuator
Description

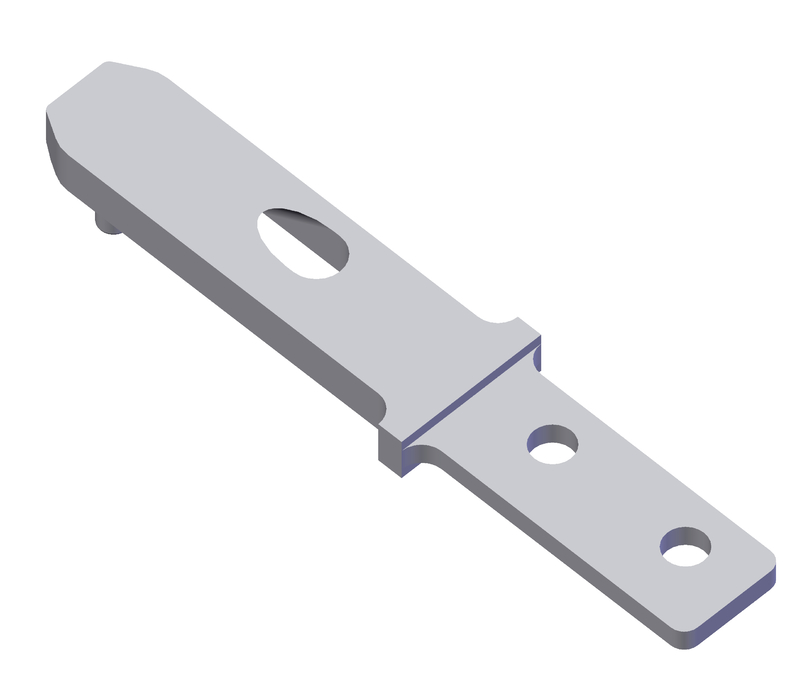

Straight actuator
The straight actuator is used on sliding doors or hinged doors with door radii greater than 1,000 mm. Safety screws prevent unscrewing of the actuators. The safety screws included can be inserted with a normal tool, but cannot be removed again.
Actuator with overtravel
4 mm | for doors with normal play |

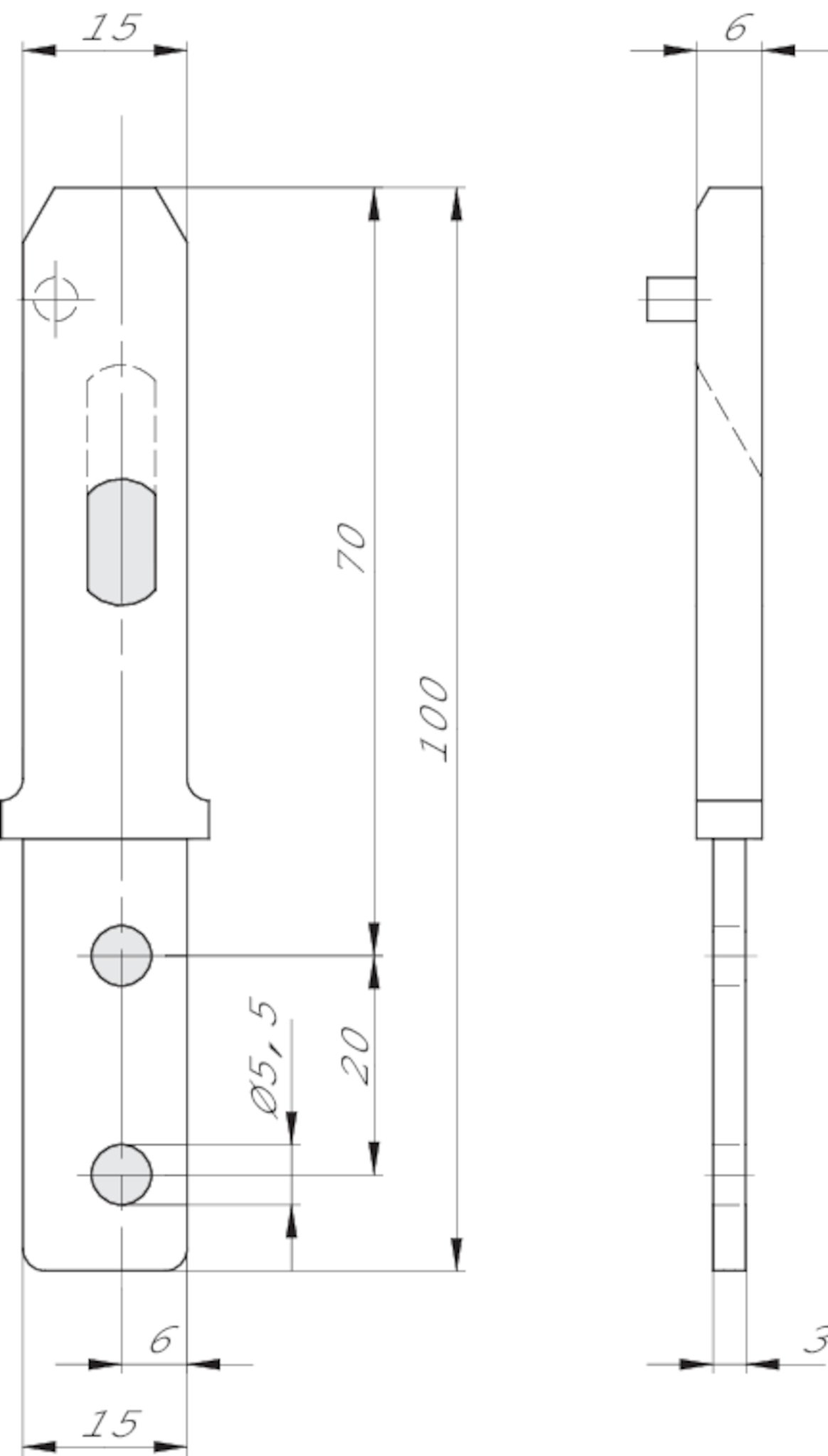

Dimensional drawings
Technical data
Approvals
Mechanical values and environment
| Overtravel | max. 4 mm |
| Door radius | min. 1000 mm |
| Material | |
| Actuator | Stainless steel |
| Screw | Stainless steel |
Miscellaneous
| Usability of insertion funnel | no |
Accessories
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Single Documents
Other Documents
Approvals and certificates
DGUV
Doc. no.
Version
Language
Size
DGUV
Doc. no.
Version
Language
Size
3,3 MB
CAD data
Ordering data
| Ordernumber | 097436 |
| Item designation | BETAETIGER-Z-GME |
| Gross weight | 0,057kg |
| Customs tariff number | 85389099990 |
| ECLASS | 27-27-26-06 Actuator for safety-related position switch |
