TZ1RE024BHA-C2399 (Order no. 119368)

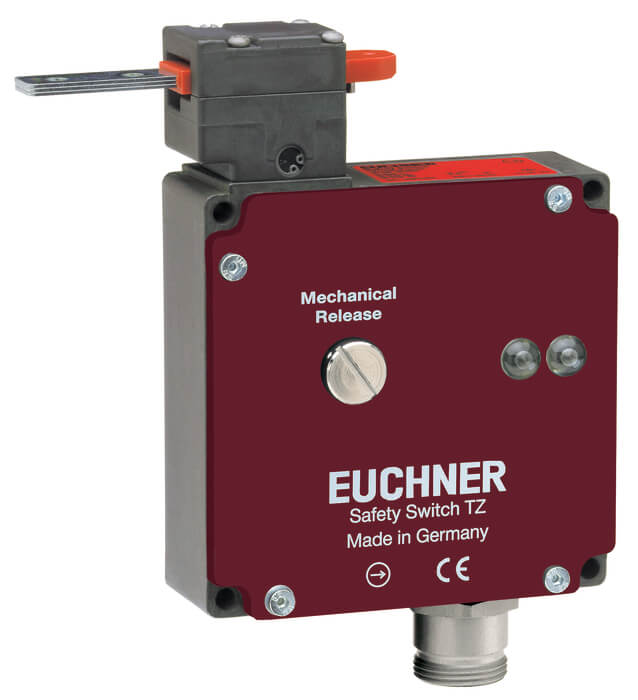

Safety switch TZ, plug connector MR10, escape release with pushbutton

  • Auxiliary release on the front
  • Escape release on the rear with pushbutton
  • Two LED displays, red and green
  • Plug connector MR10
  • Actuating head fitted right
TZ1RE024BHA-C2399 (Order no. 119368)

Description

Approach direction

Horizontal

Can be adjusted in 90° steps

Solenoid operating voltage and LED function display

  • 24 V AC/DC -15%, +10%

Guard locking type

TZ1

Closed-circuit current principle, guard locking by spring force. Release by applying voltage to the solenoid.

Switching element

SK

For monitoring the door/actuator position

ÜK

For monitoring the guard locking (built-in solenoid)

2121H

Slow-action switching contact 4 NC

Auxiliary release

This is used for releasing the guard locking with the aid of a tool. Sealing can be fitted to protect against tampering. Lead seal kit and tool included (already pre-assembled on versions with plug connectors).

Escape release

This is used for manual release of guard locking from the danger zone without tools.

Switching function
Switching function
Dimension drawing
Dimension drawing
Wiring diagram SK:2121H/ÜK:2121H-C2399
Wiring diagram SK:2121H/ÜK:2121H-C2399
Wiring diagram
Wiring diagram
Electromechanical safety switches in use

Functional drawings

Functional drawings

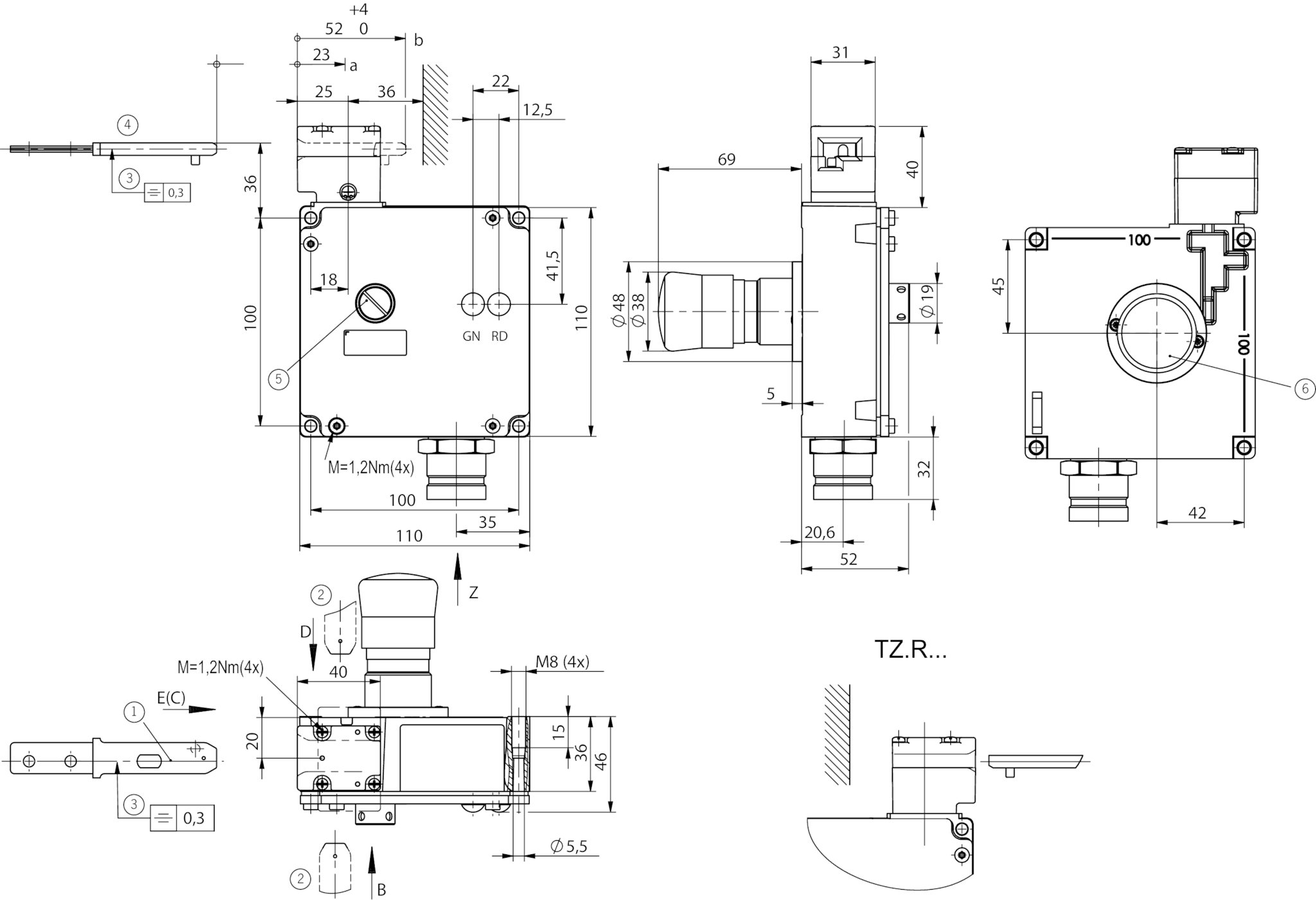

Dimensional drawings

Dimensional drawings
1Order actuator separately
2Direction adjustable
3Safety switch and actuator must be placed together for mounting on the fixture/machines.
4The guard must not be used as a mechanical stop.
5Auxiliary release
6Escape release: There must not be any tensile force on the actuator when the escape release function is activated
aTravel without operation: actuator is in the guide slot, but function is not triggered.
bSwitching operation completed. Actuator must be inserted to this point to ensure safe switching. The actuator must be withdrawn at least to point a for switching off.

Connection examples

Connection examples
Door monitoring
Solenoid monitoring

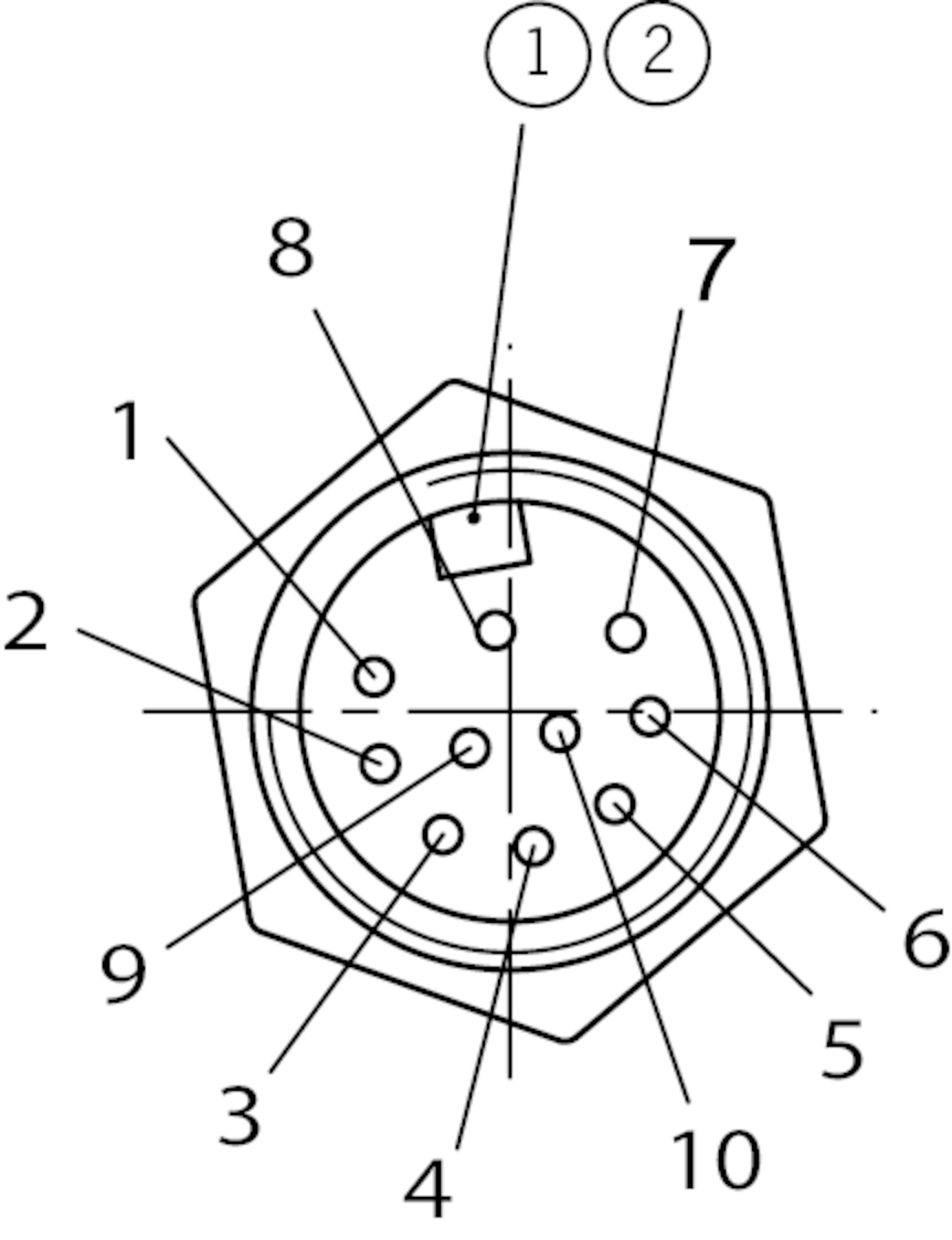

Connection examples

Connection examples
1Plug used: MIN-10MR-1-18... Mencom Corporation www.mencomcorp.com
2Plug connector is not aligned

Technical data

Approvals

EAC_RU C-DE.MO05.B.00971/20DNV-GL_TAA0000172 Rev. 1CCC2024010305643586_SafetySwitch T_STc_UL_us_E155795_2/4

Operating and display elements

LED display Operating voltage corresponds to the solenoid voltage (2 LEDs; green, red)

Electrical connection values

Power consumption 10 W
Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 1.5 kV
Utilization category
AC-15 4 A 230 V (>70 °C =>2 A)
DC-13 4 A 24 V (>70 °C =>2 A)
Short circuit protection according to IEC 60269-1 4A gG (> 70 °C => 2A gG)
Solenoid operating voltage
AC/DC 24 V -15% ... +10%
Solenoid duty cycle 100 %
Switching voltage
min. at 10 mA 12 V
Switching current
min. at 24 V 1 mA
thermal rated current Ith 4 A (>70 °C =>2 A)

Mechanical values and environment

Approach speed max. 20 m/min
Approach direction
Actuating head on the right A
Connection type
1 x Plug connector BHA10 (9-pin + PE; positively driven contact for the door position and positively driven contact for guard lock monitoring connected in series, NC contact for the door position and NC contact for guard lock monitoring connected in series)
Number of door position positively driven contacts 4
Number of guard lock monitoring positively driven contacts 4
Extraction force 30 N
Actuation frequency max. 1200 1/h
Actuating force 35 N
Lid Red
Installation orientation any
Insertion depth 52 mm
Mechanical life 1 x 10⁶
Retention force 10 N
Switching principle Slow-action switching contact
Degree of protection IP65
Ambient temperature -25 ... +80 °C
Material
Contact Silver alloy, gold flashed
Housing Anodized die-cast alloy
Locking force Fmax 2000 N
Locking force FZh 1500 N
Guard locking principle Closed-circuit current principle

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10DMission time
Monitoring of the guard position3x10620 y
Important! Values valid at DC-13 100 mA/24V
Monitoring of guard locking3x10620 y
Important! Values valid at DC-13 100 mA/24V


PLMaximum SILCategoryMission time
Control of guard lockingDepending on external control of guard locking20 y


Miscellaneous

C number
C2399 with auxiliary release and escape release ((for screwdriver, latching), (black pushbutton, latching))

In combination with actuator ACTUATOR-Z-GN

Overtravel 16 mm

In combination with actuator ACTUATOR-Z-G

Overtravel 4 mm

Accessories

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 12,5 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 119368
Item designation TZ1RE024BHA-C2399
Gross weight 1,426kg
Customs tariff number 85365019000
ECLASS 27-27-26-03 Safety switch with guard control
