Submodule MSM-1-P... (Illuminated emergency stop, 1 yellow illuminated pushbutton with symbol, slide-in label)
- Function expansion for modules MGB2 and MCM
- Connection type: P
- 1 illuminated emergency stop according to ISO 13850
- 1 yellow illuminated pushbutton with symbol
- 1 cut-out for slide-in label
- incl. 1 x slide-in label
Description
Dimensional drawings
| Pos 1 | Emergency stop according to ISO 13850, illuminated |
| Pos 3 | Illuminated pushbutton |
| Z | marks position of Item 1 |
Dimensional drawings
Technical data
Approvals

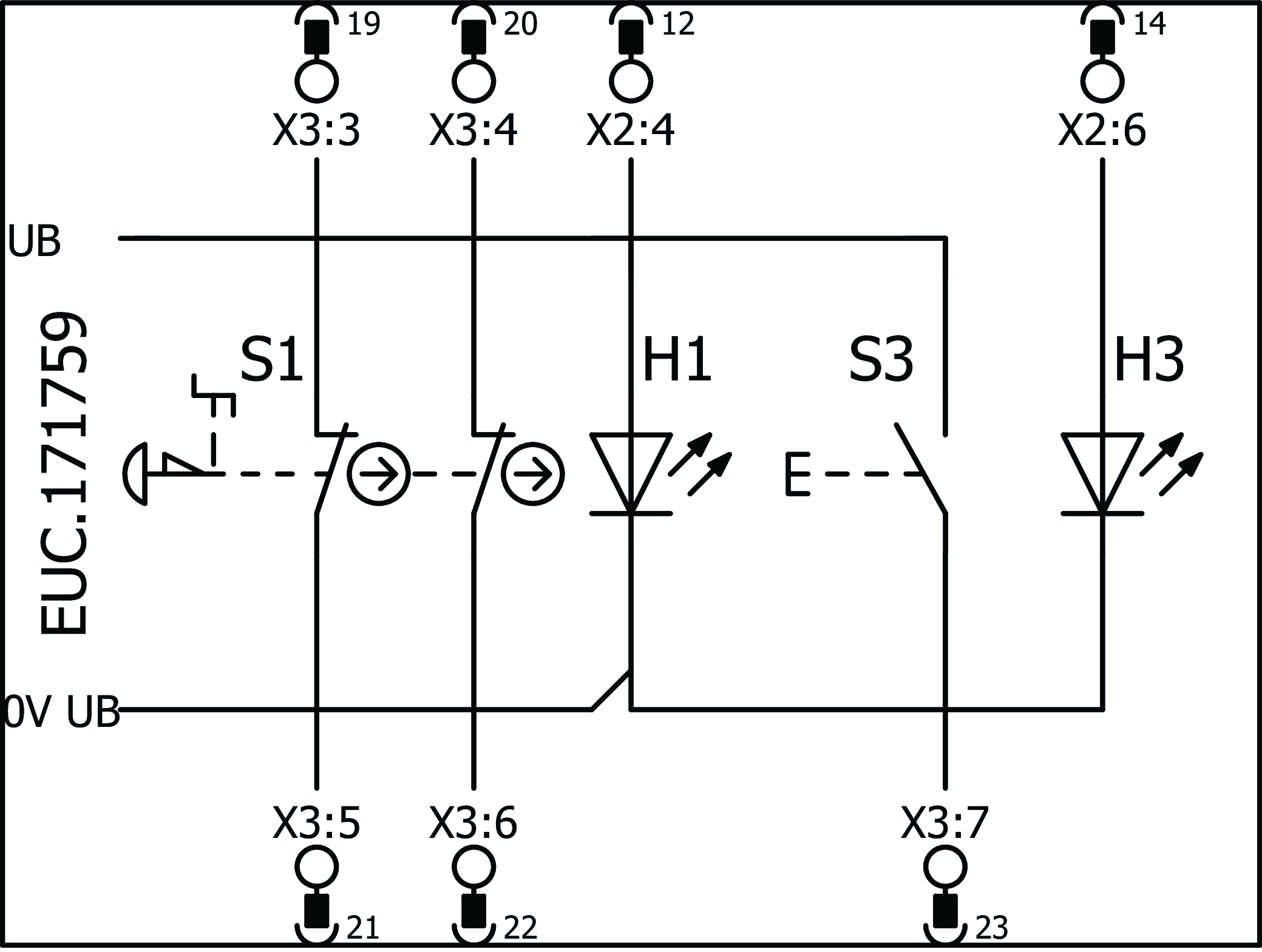

Operating and display elements
| Item | Color | Extras | Note slide-in label | Slide-in label | Version | Switching element | Number | Designation1 | LED |
|---|---|---|---|---|---|---|---|---|---|
| 1 | Illuminated emergency stop | 2 PD | |||||||
| 2 | 17.5x27 mm | Position for slide-in label | 1 | ||||||
| 3 | printed | Illuminated pushbutton | 1NO |
Electrical connection values
| Current consumption | max. 22 mA |
| Controls and indicators | |
| Breaking capacity | max. 0.25 W |
| Switching voltage | 24 V |
| Switching current | 5 ... 10 mA |
| LED power supply | 24 V DC |
| Illuminated emergency stop | |
| Breaking capacity | max. 0.25 W |
| Switching voltage | 5 ... 24 V |
| Switching current | 1 ... 100 mA |
| LED power supply | 24 V DC |
Mechanical values and environment
| Installation orientation | any |
| Response time | See operating instructions for bus module MBM-... or interlocking/locking module MGB2-I.-BR-... / MGB2-L.-BR-... |
| Shock and vibration resistance | Acc. to EN IEC 60947-5-3 |
| Degree of protection | IP65 (IP20) (IP65: only in the screwed tight state with the specified base units.) |
| Ambient temperature | |
| with UB = 24 V DC | -25 ... +55 °C |
| Material | Fiber glass reinforced plastic |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| B10D | Mission time | |
|---|---|---|
| Emergency stop | 0.13x106 | 20 y |
Miscellaneous
| Slide-in label | |||||||
| |||||||
| Software ID (SW ID) | 9000053 | ||||||
Accessories
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Single Documents
Declarations of conformity
EU-Konformitätserklärung
Doc. no.
Version
Language
Size
EU-Konformitätserklärung
Doc. no.
EDC2518509
Version
Language
Size
0,2 MB
UKCA-Konformitätserklärung
Doc. no.
Version
Language
Size
UKCA-Konformitätserklärung
Doc. no.
EDC20001508
Version
Language
Size
0,2 MB
Other Documents
Ordering data
| Ordernumber | 171759 |
| Item designation | MSM-1-P-CA-B0Q0P0-L6-171759 |
| Gross weight | 0,1kg |
| Customs tariff number | 85371098 |
| ECLASS | 27-24-26-05 Field bus, decentralized peripheral - function-/technology module |
