Hinged actuator, bottom, for safety switches NZ.VZ, NZ.VZ.VS and TZ
- Two stainless-steel safety screws per actuator
Açıklama
Hinged actuators
For door radii less than 1000 mm a hinged actuator should be used. The spring action movement of the actuator prevents damage due to the actuator jamming in the actuator head. Depending on the movement of the guard, the actuator must be selected for left/right or top/bottom.
Screws made of stainless steel
The safety screws included can be inserted with a normal tool, but cannot be removed again.

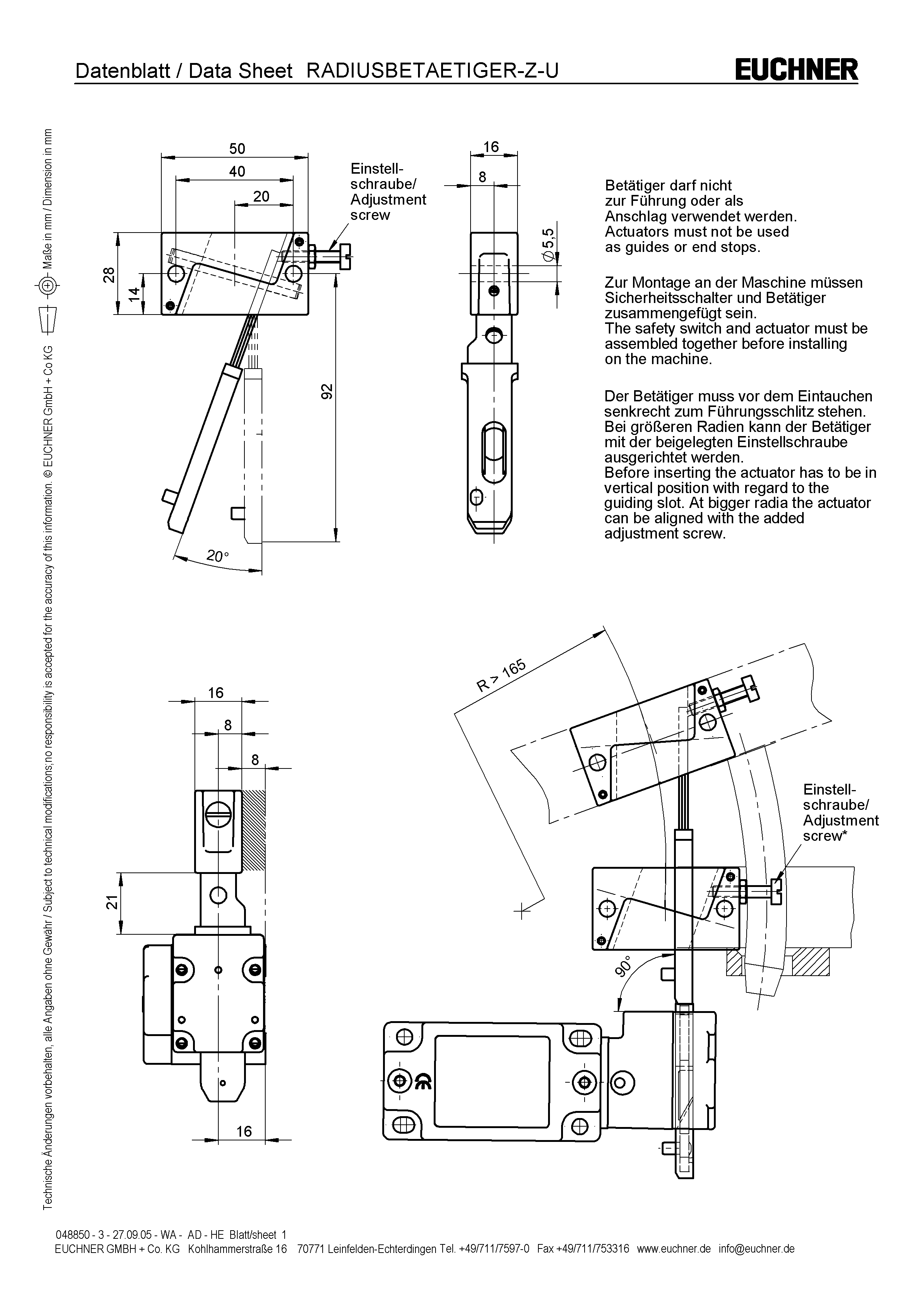

Dimensional drawings
Teknik Veriler
Approvals
Mechanical values and environment
| Overtravel | max. 4 mm |
| Door radius | min. 165 mm |
| Material | |
| Screw | Stainless steel |
| Sheath | Plastic |
| Actuator | Galvanized steel |
Miscellaneous
| Usability of insertion funnel | no |
