Bent actuator for safety switch NP/GP/TP
- Actuator made of stainless steel
- Two stainless-steel safety screws per actuator
- Actuator with rubber bush
Açıklama
Actuator with rubber bush
For flexible mounting of the actuator.
Screws made of stainless steel
The safety screws included can be inserted with a normal tool, but cannot be removed again.

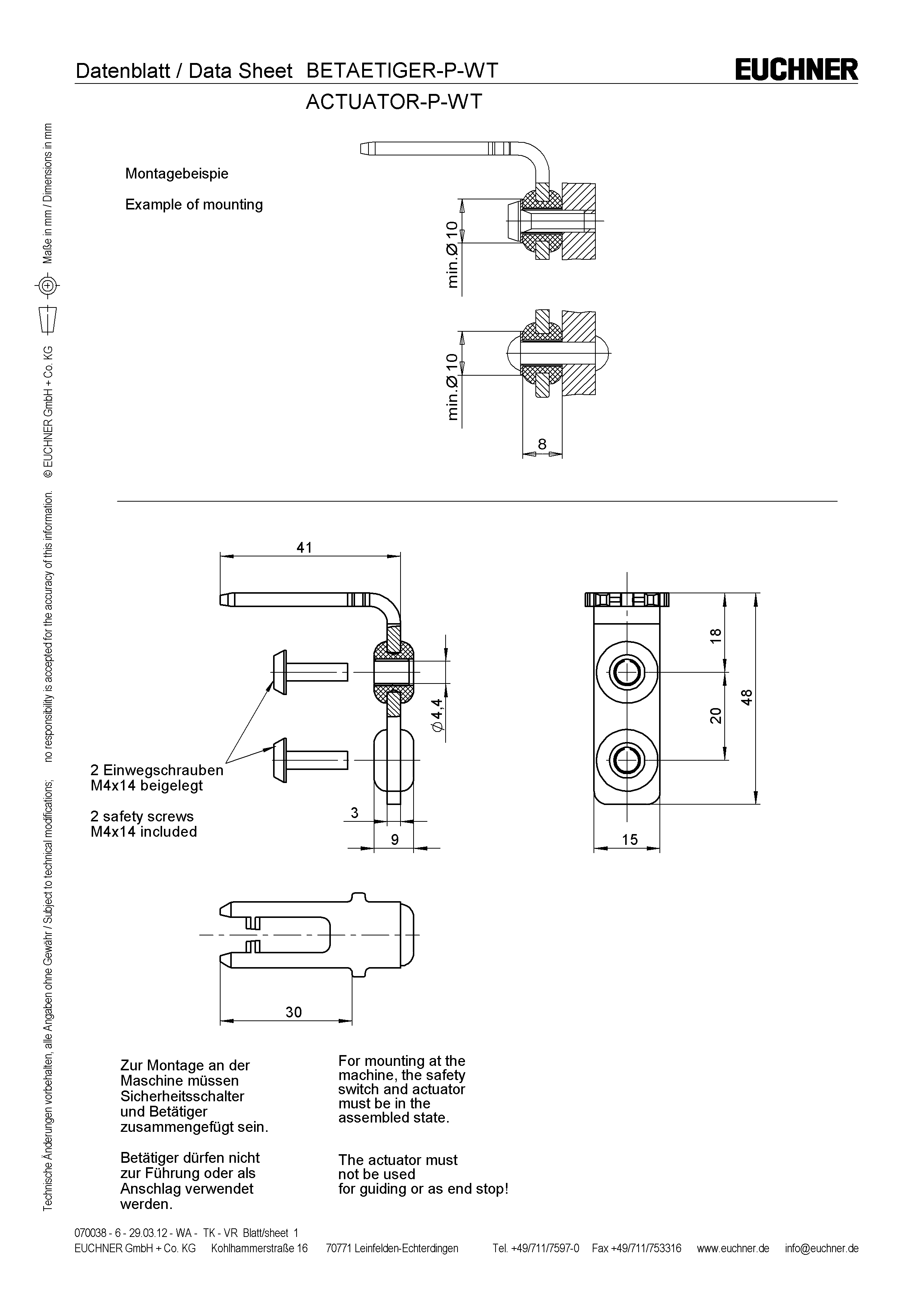

Dimensional drawings
Teknik Veriler
Mechanical values and environment
| Overtravel | max. 2 mm |
| Door radius | min. 1000 mm |
| Material | |
| Actuator | Stainless steel |
| Screw | Stainless steel |
| Rubber bush | NBR |
Miscellaneous
| Usability of insertion funnel | no |
Aksesuar
İndirme
Sales documents
Safety Switches with Plastic Housing
Dok. No.
Versiyon
Dil
Boyut
Safety Switches with Plastic Housing
Dok. No.
096956
Versiyon
11-03/18
Dil
Boyut
6,5 MB
Interrupteurs de sécurité avec boîtier plastique
Dok. No.
100677
Versiyon
11-03/18
Dil
Boyut
6,6 MB
Interruptores de seguridad con carcasa plástica
Dok. No.
104855
Versiyon
11-03/18
Dil
Boyut
6,6 MB
Sicherheitsschalter mit Kunststoffgehäuse
Dok. No.
096955
Versiyon
11-03/18
Dil
Boyut
6,6 MB
塑料壳体 的安全开关
Dok. No.
116243
Versiyon
11-03/18
Dil
Boyut
6,1 MB
Bezpečnostní spínače s plastovým pouzdrem
Dok. No.
121649
Versiyon
11-03/18
Dil
Boyut
6,5 MB
CAD Verileri
Sipariş verileri
| Sip. No. | 070038 |
| Makale adı | BETAETIGER-P-WT |
| Ağırlık | 0,03kg |
| Gümrük sınıfı | 85389099990 |
| ECLASS | 27-27-26-06 Actuator for safety-related position switch |
