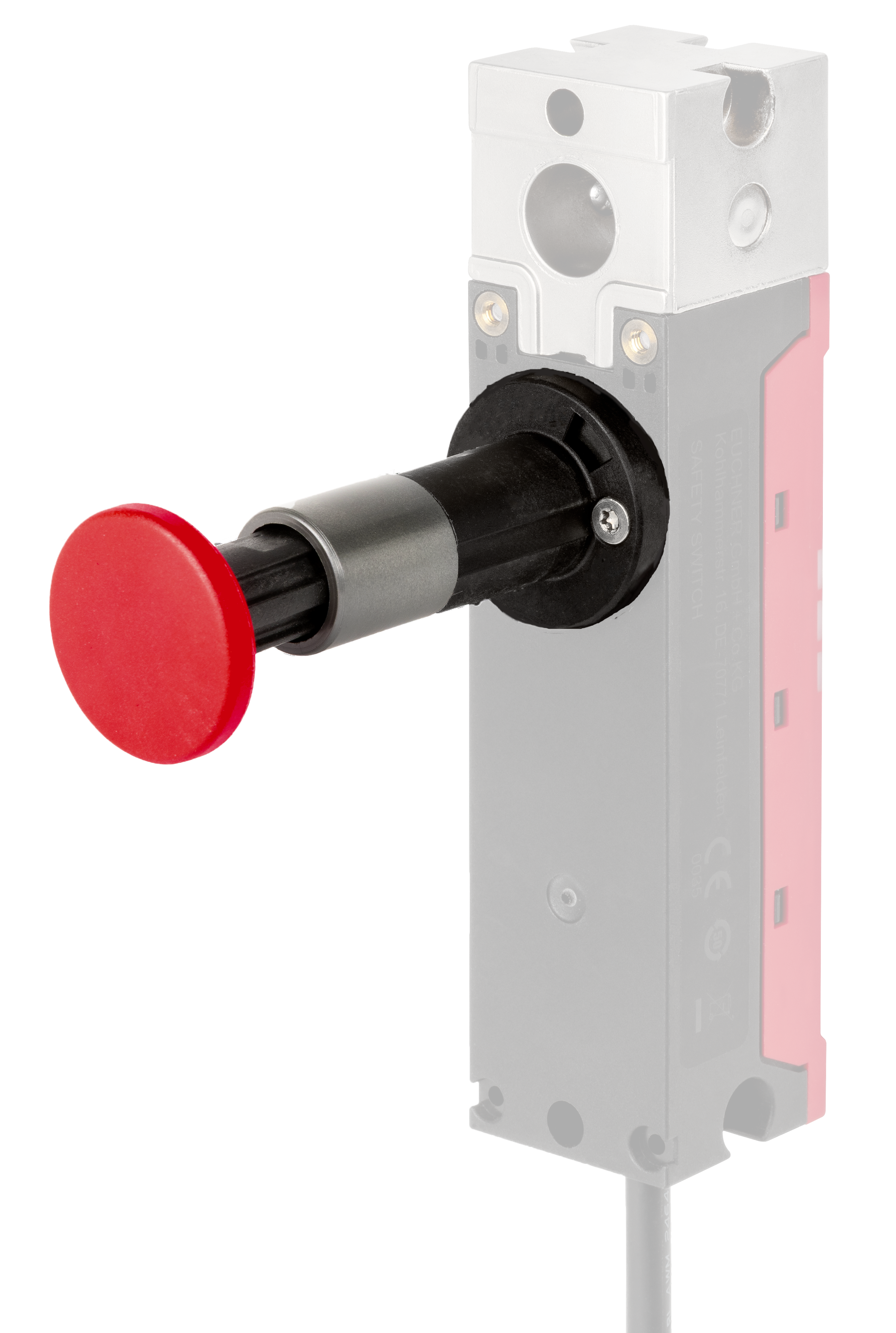

Escape release for CTS, can be retrofitted
- This is used for manual release of guard locking from the danger zone without tools
- Door knob signal red
- Extension pieces and guide sleeve for thicker doors included
![AE-E-D-172426 (Sip. No. 172426)](https://assets2.euchner.de/files/01/80/ast_3030180_xl.png)
Açıklama

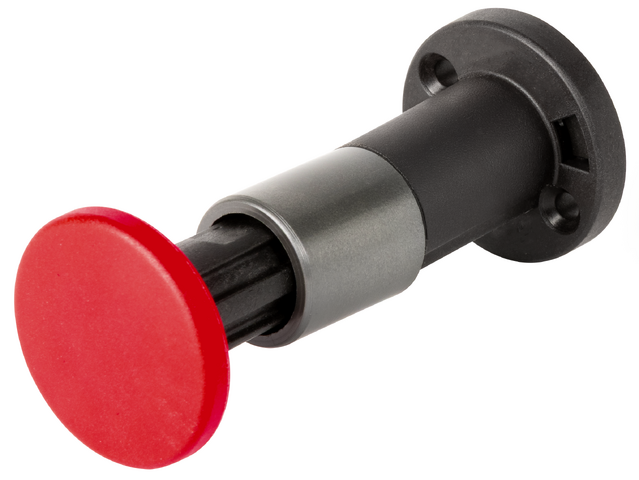

Extension pieces and guide sleeve
Two 25 mm extension pieces are included for thicker doors. If the extension pieces are used, the guide sleeve must be fitted.
![Dimension drawing](https://assets2.euchner.de/files/98/36/ast_3069836_m.png)
Dimensional drawings
![Dimensional drawings](https://assets2.euchner.de/files/98/36/ast_3069836.png)
Teknik Veriler
Mechanical values and environment
Dimensions | |
Escape release installation height | 54 / 79 / 104 mm |
Material | Reinforced thermoplastic |
Miscellaneous
Detent mechanism | Yes |
Additional feature | with extension and guide sleeve |
İndirme
Komple paket
Tüm önemli belgeleri tek bir tıklama ile indirin.
İçerik:
- Kullanım talimatları ve kullanım talimatlarına veya kısa talimatlara yapılan tüm eklemeler
- Kullanım talimatlarını tamamlayan tüm veri sayfaları
- Uygunluk beyanı
Sipariş verileri
Sip. No. | 172426 |
Makale adı | AE-E-D-172426 |
Ağırlık | 0,033kg |
Gümrük sınıfı | 85389099990 |
