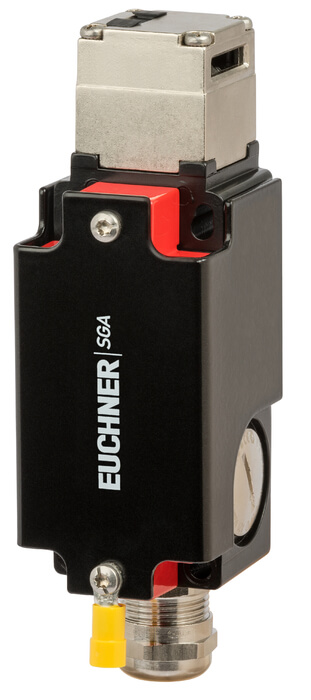

Safety switch SGA, ATEX, cable entry M20 x 1.5
- ATEX version
- 3 x cable entry M20 x 1.5
- 3 pos. driven contacts
- 1 NO contacts
- Switching disk made of metal
Açıklama
Switching element
2131 | Slow-action switching contact 3 positively driven, positively driven contacts 1 NO contact |
Required accessories
Actuator is not included in the scope of delivery.
Scope of delivery ATEX
ATEX cable gland (made of metal) M20x1.5 included in the scope of delivery.
ATEX version
Suitable for use in zones 2 and 22 (gases and dusts).
Application area II 3G D.
Use the cable gland supplied.

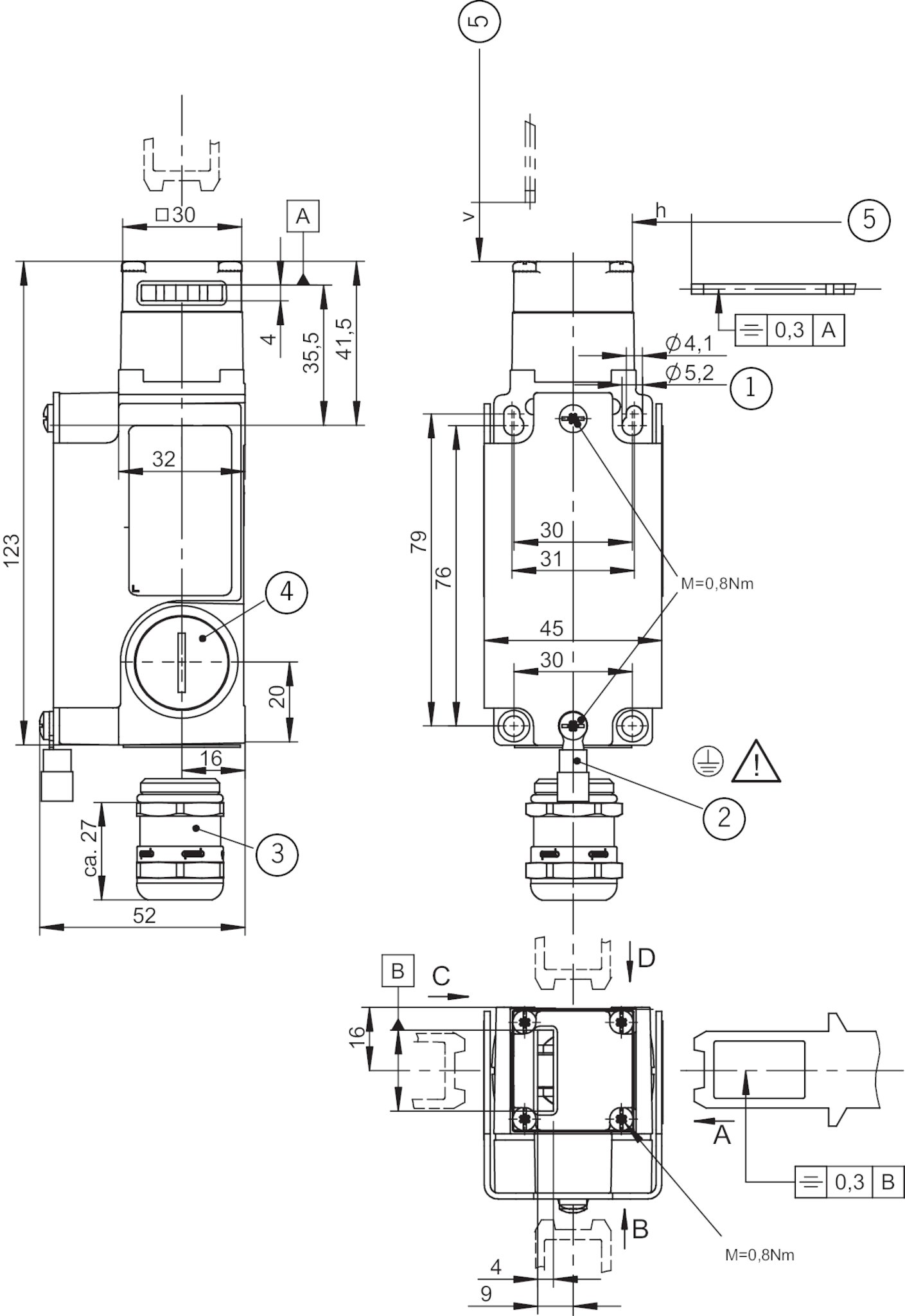

Dimensional drawings
1 | Fixed positioning for safety applications (screw M5) |
2 | Ground the switch via the earth conductor terminal to prevent electrostatic charging. |
3 | ATEX cable gland M20x1.5 included, clamping range Ø6.5...12 mm |
4 | Screw plug M20x1.5 (2x) |
5 | Insertion depth |
Connection examples
Teknik Veriler
Approvals
Electrical connection values
Connection cross section | 0.34 ... 1.5 mm² |
Rated insulation voltage Ui | 50 V |
Rated impulse withstand voltage Uimp | 2.5 kV |
Utilization category | |
AC-15 | 4 A 50 V |
DC-13 | 4 A 24 V |
Short circuit protection according to IEC 60269-1 | 4A gG |
Switching voltage | |
min. at 10 mA | 12 V |
Switching current | |
min. at 24 V | 1 mA |
thermal rated current Ith | 4 A |
Mechanical values and environment
Approach speed | max. 20 m/min |
Approach direction | A |
Connection type | |
3 x | M20 x 1.5 |
Number of door position NO contacts | 1 |
Number of door position positively driven contacts | 3 |
Extraction force | 25 N |
Actuation frequency | max. 6700 1/h |
Actuating force | 25 N |
Installation orientation | any |
Insertion depth | 24.5 mm |
Mechanical life | 2 x 10⁶ |
Retention force | 10 N |
Switching principle | Slow-action switching contact |
Degree of protection | IP67 |
Ambient temperature | -10 ... +75 °C |
Material | |
Contact | Silver alloy, gold flashed |
Housing | Die-cast alloy, cathodically dipped |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
B10D | Mission time | |
---|---|---|
Monitoring of the guard position | 3x106 | 20 y |
Important! Values valid at DC-13 100 mA/24V |
Miscellaneous
Explosion protection | |
incl. cable gland | II3G Ex nR IIB T5 Gc X / II3D Ex tc IIIC T90° Dc X |
