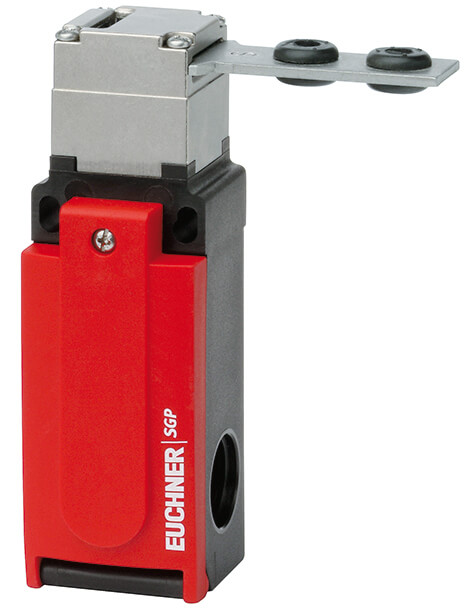

Safety switch SGP

Safety switch SGP

The SGP safety switch is the counterpart to the STP safety switch. The entire STP and SGP product families have the same metal actuating head and the same actuators.
This means that the STP (safety switch with guard locking) or SGP (without guard locking) safety switches can be used in a system, depending on the requirements.
EUCHNER offers the SGP product series with switching elements with different contact combinations (positively driven, positively driven contact / normally open contact).
Dual-channel wiring for the highest possible safety level is possible for all variants.
With the ability of the switching contacts to switch a minimum current of 1 mA, the SGP safety switch is also suitable for mode on safe control systems.

Features

Same drilling pattern as STP, same actuators
Same metal actuating head for the highest requirements
Flexible connection options via three cable entries
High degree of protection IP 67

Safety switch SGP

Ürün Bulucu

Hızlı Arama

Number of door position positively driven contacts

Degree of protection

Twin

Connection

AS-Interface

Ürünler (10)

Sonuç bulunamadı

SGP-TW-1E-2131AC-M

100809
SGP-TW-1E-2131AC-M
Safety switch SGP-TW, cable entry M20 x 1.5

TWIN function (two actuating heads)
3 x cable entry M20 x 1.5
3 pos. driven contacts
1 NO contacts

SGP-TW-1E-2131AC-M-S1

099900
SGP-TW-1E-2131AC-M-S1
Safety switch SGP-TW, cable entry M20 x 1.5

TWIN function (two actuating heads)
3 x cable entry M20 x 1.5
3 pos. driven contacts
1 NO contacts
Additional lock on the switch head

097705
SGP1E-2121A-M
Safety switch SGP, cable entry M20 x 1.5

3 x cable entry M20 x 1.5
4 positively driven, positively driven contacts

097706
SGP1E-2131A-M
Safety switch SGP, cable entry M20 x 1.5

3 x cable entry M20 x 1.5
3 pos. driven contacts
1 NO contacts

097707
SGP1E-3131A-M
Safety switch SGP, cable entry M20 x 1.5

3 x cable entry M20 x 1.5
2 pos. driven contacts
2 NO contacts

100907
SGP2E-2131A-9C-DCX
Safety switch SGP, plug connector MR9

Plug in 9 pin MR9 (without PE)
3 pos. driven contacts
1 NO contacts

099084
SGP2E-2131ASR11
Safety switch SGP, plug connector SR11

Plug connector(s) SR11, 11-pole (without PE)
3 pos. driven contacts
1 NO contacts

104022
SGP2E-538ASR6
Safety switch SGP, plug connector SR6

Plug connector(s) SR6, 6-pin (without PE)
2 pos. driven contacts

099126
SGP3E-538ASEM4AS1
Safety switch SGP ASi, plug connector M12

AS Interface
Plug connector(s) M12, 4-pin
2 pos. driven contacts
Internal LED function display

169844
SGP3E-538ASFM5C2628
Safety switch SGP, plug connector(s) M12

M12 plug connector(s), 5-pin (4 poles connected)
2 pos. driven contacts
