Emergency stop ES-XW, built-in devices, 22 mm
- Button head, red, 40 mm ø
- Contact block monitoring
- Reset by pulling or turning
![ES-XW1E-BV404MFR (Sip. No. 113893)](https://assets2.euchner.de/files/76/99/ast_737699_xl.png)
Açıklama
Switching element
- 4NC
![Wiring diagram](https://assets2.euchner.de/files/48/86/ast_654886_m.png)
![Dimension drawing](https://assets2.euchner.de/files/38/38/ast_643838_m.png)
Functional drawings
![Functional drawings](https://assets2.euchner.de/files/48/86/ast_654886.png)
Dimensional drawings
![Dimensional drawings](https://assets2.euchner.de/files/38/38/ast_643838.png)
Teknik Veriler
Approvals
![EAC_RU C-DE.MO05.B.00971/20](https://assets2.euchner.de/files/06/97/ast_630697_m.png)
![TUEV Süd München_B 040393 0043](https://assets2.euchner.de/files/82/70/ast_628270_m.png)
![UL_us_E326576](https://assets2.euchner.de/files/07/95/ast_630795_m.png)
![c_UL_us_E93776_16](https://assets2.euchner.de/files/82/74/ast_628274_m.png)
Electrical connection values
Rated insulation voltage Ui | 250 V |
Utilization category | |
AC-15 Normally closed contact | 1.5 A 250 V |
DC-13 Normally closed contact | 1 A 30 V |
Switching current | |
min. at 24 V | 10 mA |
thermal rated current Ith | 1 A |
Mechanical values and environment
Connection type | Screw terminal |
Number of positively driven contacts | 4 |
Mechanical life | 0.25 x 10⁶ |
Mounting type | IEC 947-5-1 D22 |
Degree of protection | IP20 |
Ambient temperature | -25 ... +60 °C |
Material | |
Housing | Polycarbonate |
Pushbutton | Reinforced thermoplastic |
Contact | Silver alloy, gold flashed |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
B10D | Mission time | |
---|---|---|
Emergency stop | 0.1x106 | 20 y |
Miscellaneous
Color | |
Bottom part | Yellow |
Actuating button | Red |
Additional feature | |
Contact block monitoring | |
Button head Ø 40 mm | |
Reset by pulling or turning |
İndirme
Komple paket
Tüm önemli belgeleri tek bir tıklama ile indirin.
İçerik:
- Kullanım talimatları ve kullanım talimatlarına veya kısa talimatlara yapılan tüm eklemeler
- Kullanım talimatlarını tamamlayan tüm veri sayfaları
- Uygunluk beyanı
Tek Belgeler
Declarations of conformity
EU-Konformitätserklärung
Dok. No.
Versiyon
Dil
Boyut
![Dok. No. EDC2105755](https://assets2.euchner.de/files/67/59/ast_2296759_thumb.jpg)
EU-Konformitätserklärung
Dok. No.
EDC2105755
Versiyon
Dil
Boyut
0,1 MB
UKCA-Konformitätserklärung
Dok. No.
Versiyon
Dil
Boyut
![Dok. No. EDC20001636](https://assets2.euchner.de/files/82/41/ast_2548241_thumb.jpg)
UKCA-Konformitätserklärung
Dok. No.
EDC20001636
Versiyon
Dil
Boyut
0,2 MB
Diğer Belgeler
Approvals and certificates

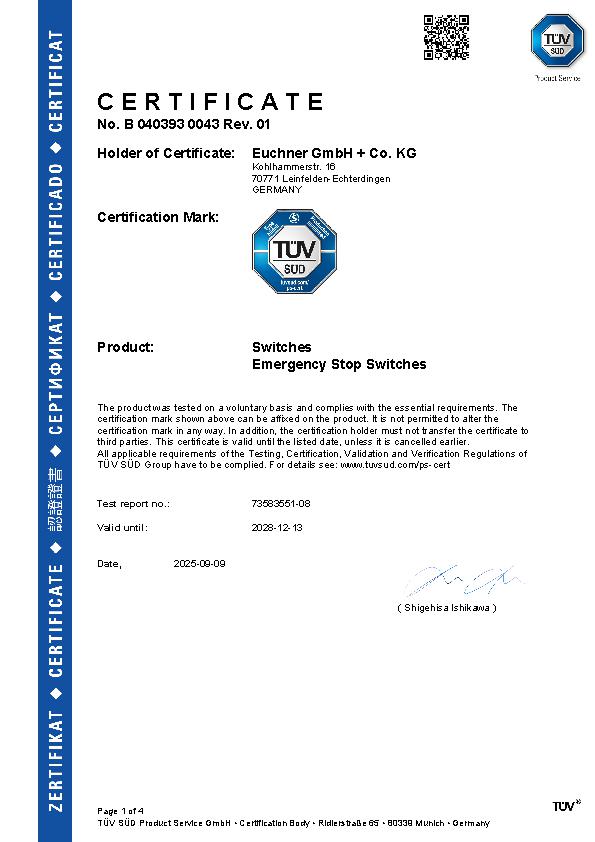

TUEV Süd München
Dok. No.
Versiyon
Dil
Boyut
![Dok. No.](https://assets2.euchner.de/files/66/73/ast_1926673_thumb.jpg)
TUEV Süd München
Dok. No.
Versiyon
Dil
Boyut
0,5 MB
UL us
Dok. No.
Versiyon
Dil
Boyut
![Dok. No.](https://assets2.euchner.de/files/34/43/ast_743443_thumb.jpg)
UL us
Dok. No.
Versiyon
Dil
Boyut
0,3 MB
c UL us
Dok. No.
Versiyon
Dil
Boyut
![Dok. No.](https://assets2.euchner.de/files/34/21/ast_743421_thumb.jpg)
c UL us
Dok. No.
Versiyon
Dil
Boyut
0,3 MB
Sales documents
Emergency Stop Devices/Rope Pull Switches
Dok. No.
Versiyon
Dil
Boyut
![Dok. No. 116448](https://assets2.euchner.de/files/83/28/ast_438328_thumb.jpg)
Emergency Stop Devices/Rope Pull Switches
Dok. No.
116448
Versiyon
06-06/16
Dil
Boyut
1,8 MB
![Dok. No. 116529](https://assets2.euchner.de/files/83/27/ast_438327_thumb.jpg)
Dispositifs d‘arrêt d‘urgence/interrupteurs à câble
Dok. No.
116529
Versiyon
06-06/16
Dil
Boyut
1,8 MB
![Dok. No. 116530](https://assets2.euchner.de/files/83/25/ast_438325_thumb.jpg)
Dispositivos de parada de emergencia / Interruptores de accionamiento por cable
Dok. No.
116530
Versiyon
06-06/16
Dil
Boyut
1,8 MB
![Dok. No. 106210](https://assets2.euchner.de/files/83/26/ast_438326_thumb.jpg)
Not-Halt-Geräte/Seilzugschalter
Dok. No.
106210
Versiyon
06-06/16
Dil
Boyut
1,8 MB
Sipariş verileri
Sip. No. | 113893 |
Makale adı | ES-XW1E-BV404MFR |
Ağırlık | 0,064kg |
Gümrük sınıfı | 85365019000 |
ECLASS | 27-37-12-44 EMERGENCY-STOP pushbutton, complete device |
